How do I set the pressure limit and change to pulse-free mode on the ENO-30? :

How do I set the pressure limit and change to pulse-free mode on the ENO-30? Print

Modified on: Wed, 13 Nov, 2019 at 12:51 PM

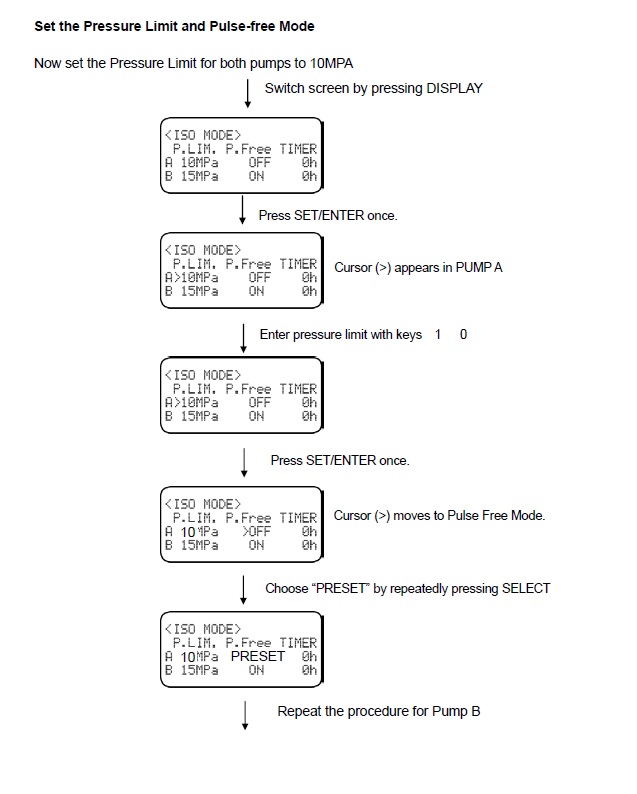

Please see excerpt below from the ENO-30 user manual (p.20) for setting the pressure limit and toggling pulse-free mode. The pressure limit can be set anywhere from 0-20 MPa, but is typically set between 10-15 MPa. Pulse-free mode should always be 'ON' for analysis, but can be toggled off temporarily during maintenance or troubleshooting.
